NcCommenter

The update of this page is 07/11/11 ,  Please see the update of each item on each page.

[The feature and a function]

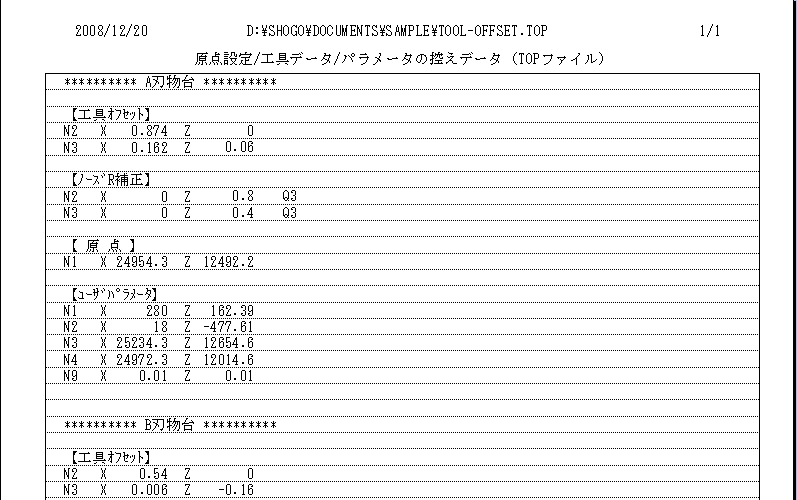

- This software can print various data, such as NC program and a robot program by OKUMA CORP., with description .
- Read existing NC program and an existing data file, change intelligibly a G code, the M code system variable, a mnemonic, etc. into Japanese (correspondence also into English is possible), and express an original file and an original comment sentence as a part rate screen simultaneously.

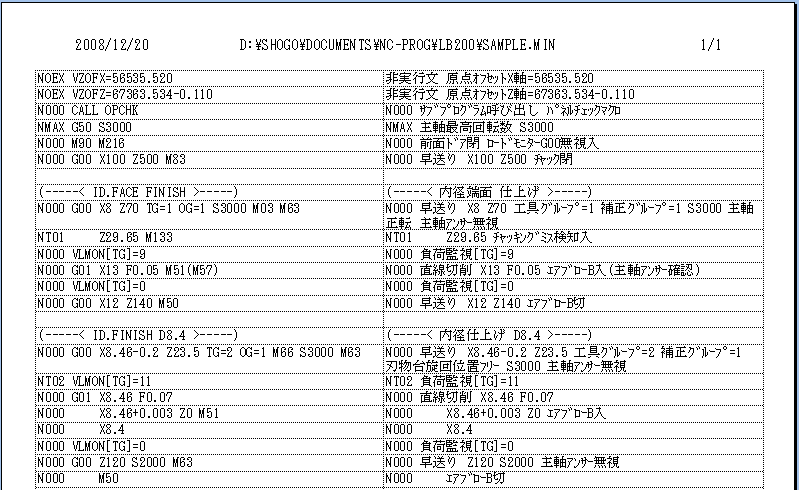

- Carry out the part rate also of the print-out, and it prints both. The file chisel after an original file and original conversion can also be printed.
- Save the comment sentence after conversion as another file, and reading is possible in Excel etc.
- Since description is displayed on real time whenever it inputs NC program by the conversion function at any time, an input mistake uses also as an editor for understanding NC program beginners immediately.
- It can be used also as a dictionary of NC language. Retrieval of a G code, the M code, a system variable, etc. can be performed in a Japanese input.
- An original dictionary can be drawn up by dictionary file creation / change function.
- The lathe, machining center, and grinder of OKUMA CORP. have a nearly perfect dictionary file, and, also as for other control units, a standard G/M code already has a registered dictionary file.
- Conversion of a G/M code can be performed between each maker's control units by drawing up an original dictionary.

Example: M99-> RTS, M98->CALL .

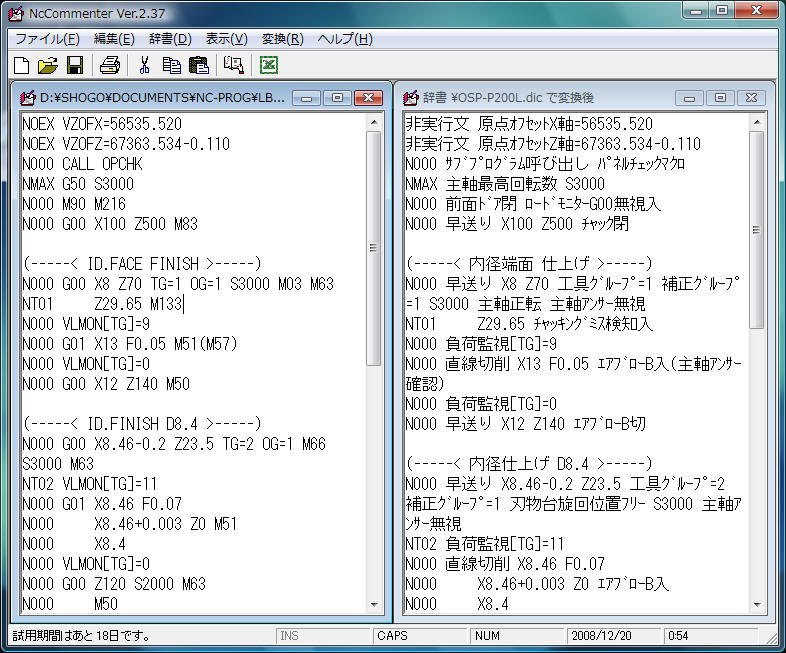

[Appearance]

[Revision history]

Ver.2.01: Add error processing in case a dictionary file is not found.
Ver.2.02: Add file opening (a file is clicked and opened) from a command line.
Ver.2.03: Correspond to resizing of a text window.
Ver.2.04: When the file was opened, the dictionary file corresponding to an extension name was chosen and changed automatically.
Ver.2.05: (The extension name of MIN, SUB, SSB, SDF, LIB, TOP, LDR, LPD, and TXT is registered) Add reverse influence of a dictionary.
Ver.2.06: Change the initial value of the extension name when opening a file into all files.
Ver.2.07: Change so that printing may be possible according to each data.
Ver.2.08: Correct processing in case the number of characters at the time of the Japanese inputs ON and OR is 0 about the input of the reverse time to leave.
Ver.2.09: When it closes minimizing, correct becoming with minimization at the time of next starting.
Ver.2.10: Correct the fault of deletion of a word.
Ver.2.11: Correct the error when inputting a null at the time of registration of a word.
Ver.2.12 : When logged in in the name of full width by Windows2000 and XP, the fault which is not made in installation is corrected.
Ver.2.13: Correct the fault which becomes the version error of a dictionary about a local option Japan and except English.
Ver.2.14: Correspond the direction of a paper of printing sideways.

[Download for update]

Please copy update into "C:\Program Files\NcCommenter" after defrosting, and carry out overwrite.
