NcEditor

The update of this page is 09/29/14 ,  Please see the update of each item on each page.

[Main functions]

- The process of program creation of - material form, lathe processing, or I ring processing, and automatic creation of a measurement program.
- Automatic creation of B axis slanting hole processing program of MacTurn series.
- The arrangement of a dance and an arrangement of a sequence number.
- Package change can be performed based on various data four-operations types, such as X, Y, Z, C, S, and SB. Thereby, movement of the origin, expansion of data, reduction, change of a unit, etc. can be performed simply.

[Appearance]

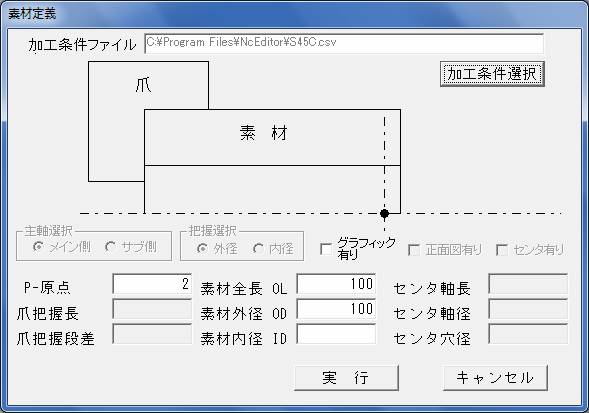

【from Ver.2.17】

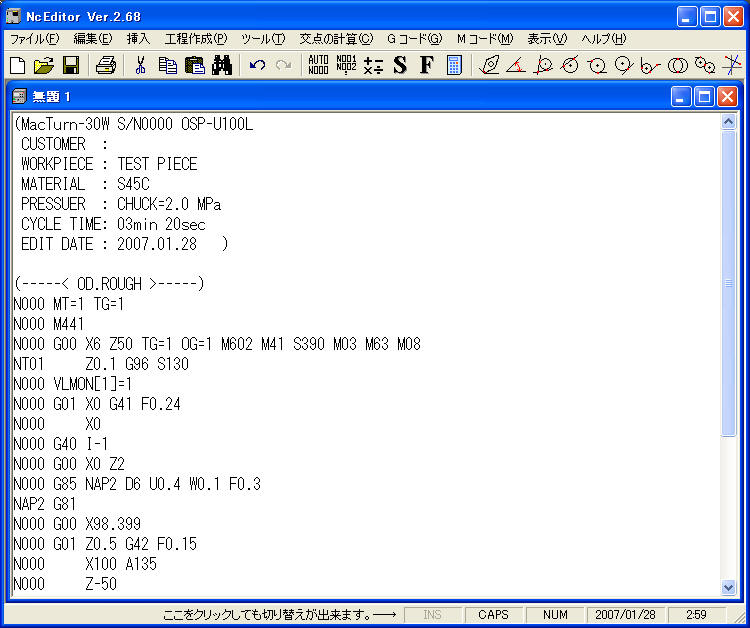

【from Ver.2.21】

[Revision history]
Ver.2.01: When the file is not first open, change so that a menu may not be displayed.
Ver.2.02: Correction of a pathname-less error occurring at the time of insertion of a fixed form title.
Ver.2.03: When two or more difference and a file are closed for a file, change so that a layout may be corrected automatically.Change a help into a retrieval display from the beginning.
Ver.2.04: Replace the turn of a slanting processing starting point shift macro. (G127, G174->G174, G127) A Ver.2.05:ATC macro is corresponded to M321, M421, and M441.
It corresponds to the tool post types H1 and H2. It changes so that preparation instructions and ATC instructions may be outputted at the beginning of a process.
Ver.2.06: Make process creation with roughing and add "face and the outer diameter" of processing.
Ver.2.07: Add an end mill circle and a planet tap to process creation. However, only a slope is.
Ver.2.08: Change the initial value of a sequence number arrangement into 1 from 0.
Ver.2.09: Change so that the place of a sequence name may also carry out space processing.
Ver.2.10: Change so that a processing condition file may be added and conditions can be chosen.
Ver.2.11: Change so that the degree of B axial angle and starting point shift amount of slope processing may be memorized.
Ver.2.12: Change a drill process into high-speed steel and carbyte.
Ver.2.13 : It changes so that a G code may be displayed on the menu of a G code.
Ver.2.14: Add the system variable output of tool form.
Ver.2.15 : When logged in in the name of full width by Windows2000 and XP, the fault which is not made in installation is corrected.
Ver.2.16: Correspond the direction of a paper at the time of printing sideways.
Ver.2.17 : It changes so that the intersection of the circle which touches the intersection of two straight lines and it may also be calculated.
Ver.2.18: If the upgrade version is installed, it will change so that it can be used also by trial expiration.
Ver.2.19: Change the contents of the grooveing process, and the 2nd compensation number into +20 the 1st.
Ver.2.20 : Since it was set to MT=**03 when not using tool life management by MacTurn-H1, it corrects so that it may be set to MT=**01.
Ver.2.21 : [The intersection of a straight line and a circle] is added. The icon for calculation is added.
Ver.2.22 :

[Download for update]

Please copy update into "C:\Program Files\NcEditor" after defrosting, and carry out overwrite.
